Description
| Product name | Mini Laser Engraving Machine |
| Laser power | 5W |
| Power of the whole machine | <60W |
| Body material | High strength aluminum, anodized |
| Engraving mode | X, Y axis drive, semiconductor LD diode light engraving |
| Laser focus | One-touch autofocus |

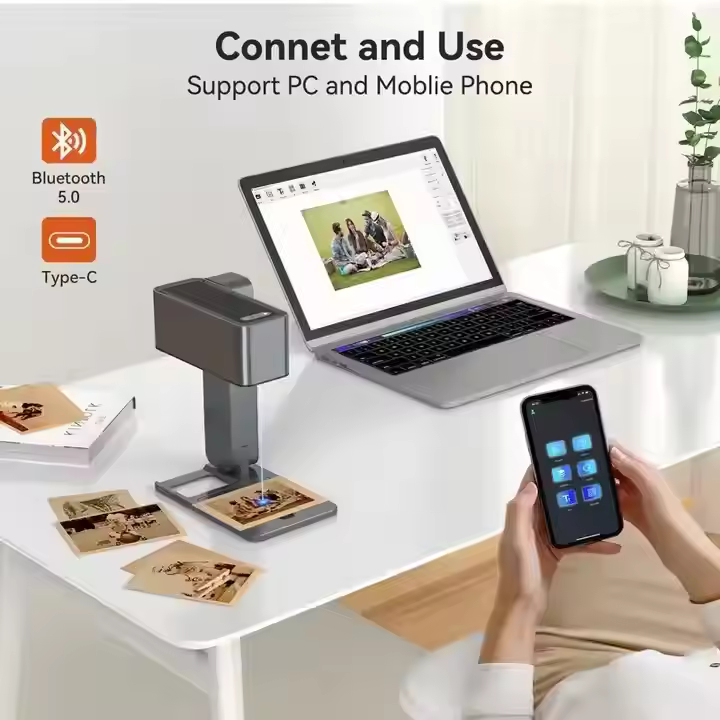

| Data interface | Dual-mode blue tooth 5.0, support Android apple, app software operation; USB to serial port wired transmission, PC software operation |
| Power supply | 12V/5A DC power supply or mobile power supply |
| Safety protection function | Tilt Protection |
| Heat Dissiption | Air-cooling |
| Engraving speed | 800mm/s |
| Engraving precision | 0.05mm |
| Engraving area | 80*80mm |
| Image format | JPG, BMP (24bit), TIFF, PNG (32bit), PCX（8bit and 24bit), PCD |

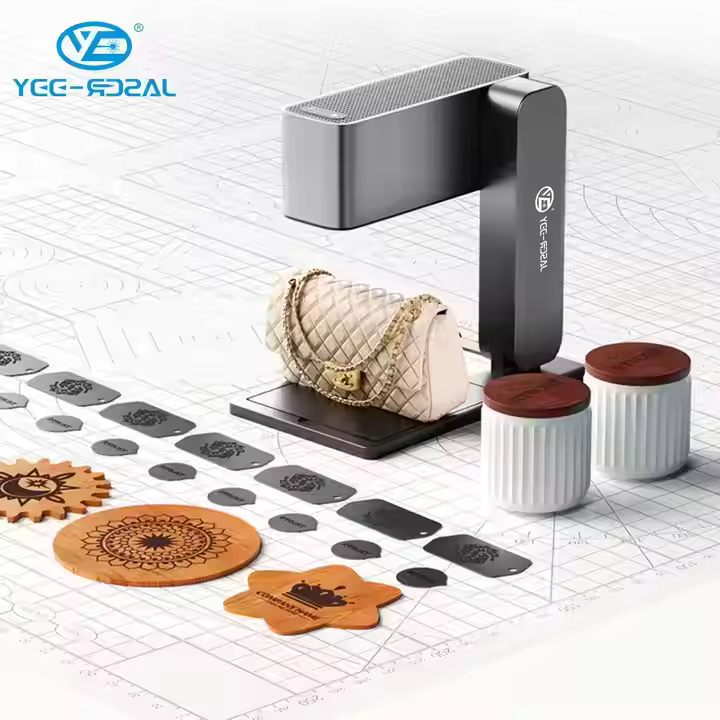

| Engaving material | Wood, bamboo,acrylic, leather,paper,fabric, corrugrated paper, food, fruit, plastic, stone, bone, oxidized aluminum alloy, glass, shale/bricks/cement,stainless steel, lacquered metal, ceramics |
| Cutting material | Wooden board, paper, cloth, leather, acrylic, corrugated paper |
| Product size | 220*130*220mm |
| Product weight | 1.9kg |
| Support operate system | MAC，WIN，Android，IOS |
| Laser is replaceable | Yes |
| Working temperature | 0~45℃ |
| Working life | Laser module life of more than 10,000 hours |
| Certification | CE /ROSH |
| Warning | Do not use the laser light source of this product to illuminate anything other than the object to be carved, especially the human eye. · When carving plastic items and cutting plastic items, fans should be used to blow away the smoke to avoid the smoke attached to the transmission parts On, causing blockage and corrosion, but also to avoid inhalation of toxic gases. |
